Front Combination Light (LH) Connector End View

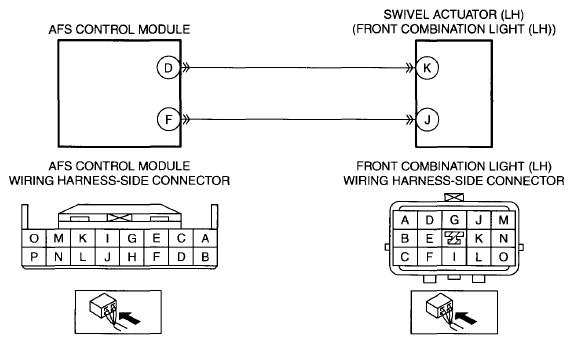

Fig 1: Front Combination Light (LH) Connector End View

G09076359

Courtesy of MAZDA MOTORS CORP.
