Dynamic Stability Control System Connector End View (0415-1)

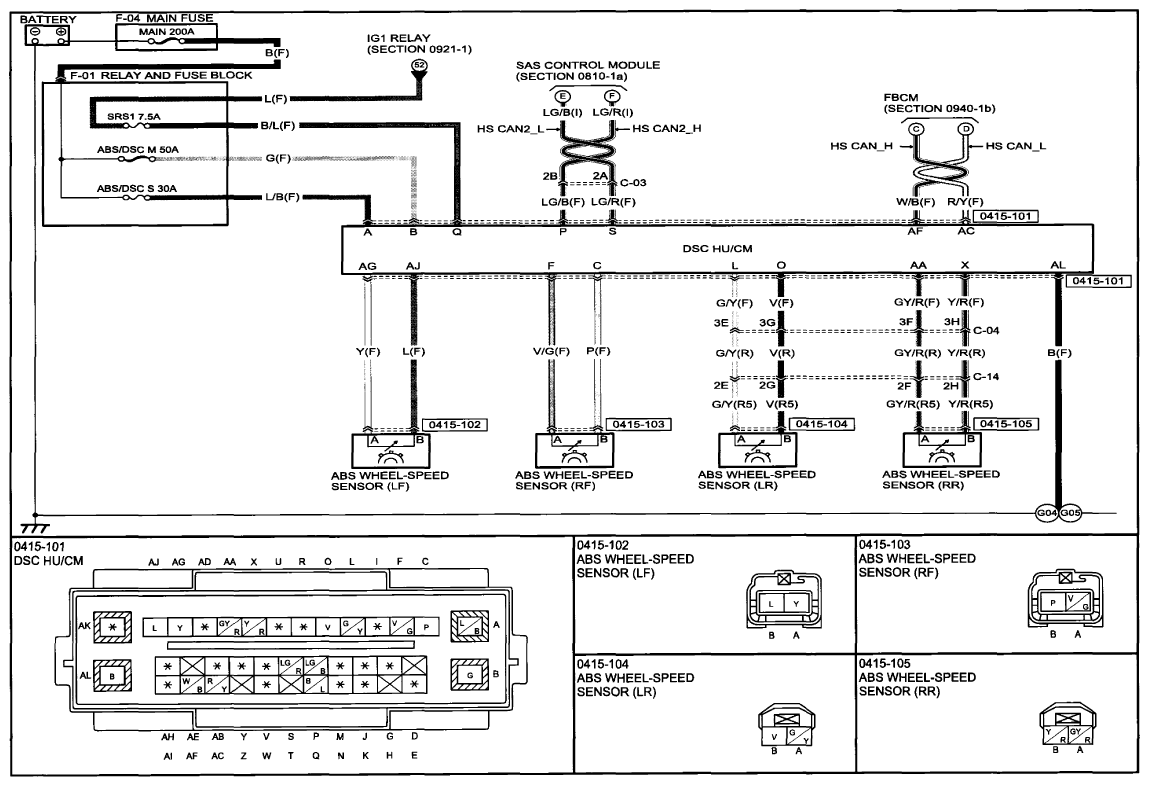

Fig 1: Dynamic Stability Control System Connector End View (0415-1)

G09120235

Courtesy of MAZDA MOTORS CORP.
