Body Control System Connector End View (0940-1c)

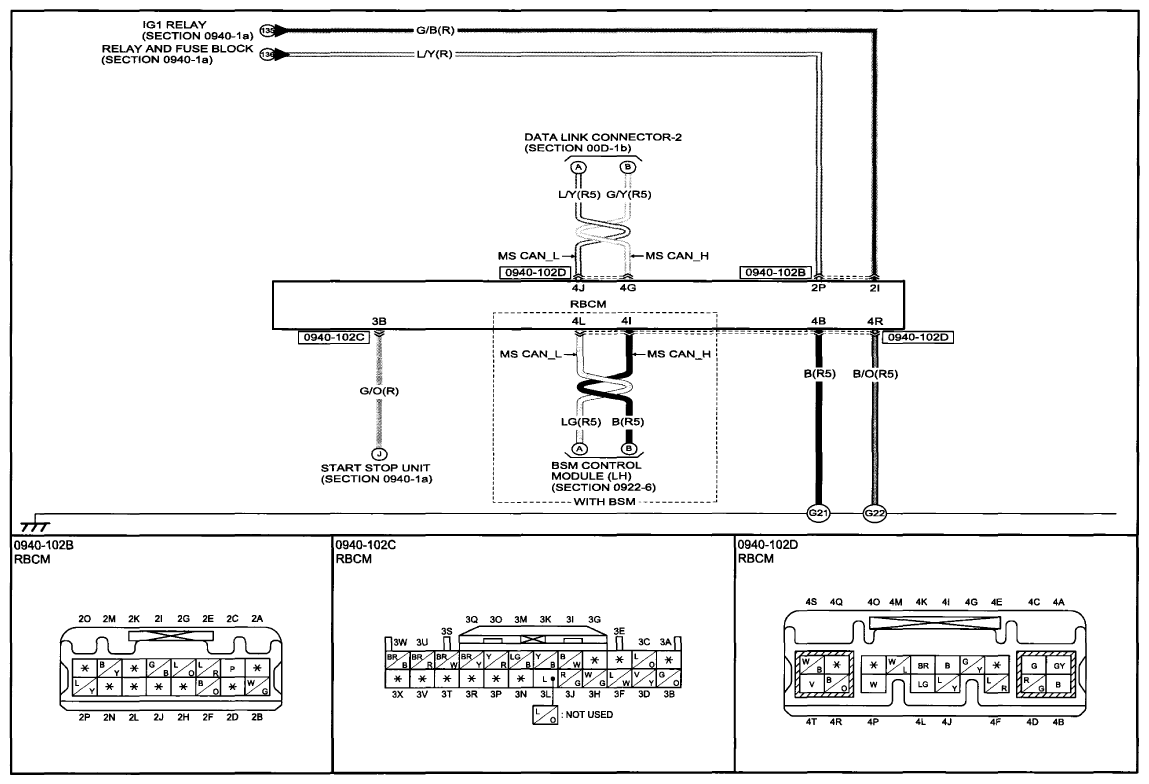

Fig 1: Body Control System Connector End View (0940-1c)

G09120369

Courtesy of MAZDA MOTORS CORP.
