Body Control System Connector End View (0940-1b)

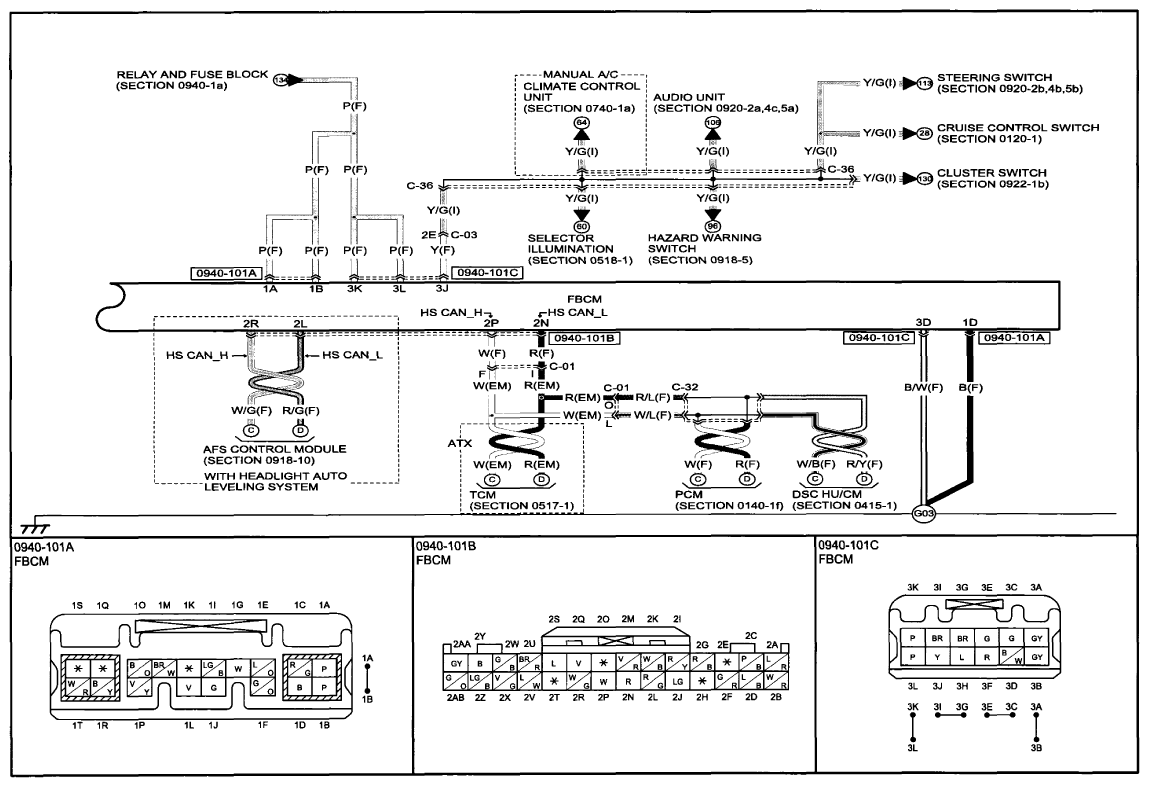

Fig 1: Body Control System Connector End View (0940-1b)

G09120367

Courtesy of MAZDA MOTORS CORP.
