Automatic Transaxle Control System Connector End View (0517-1)

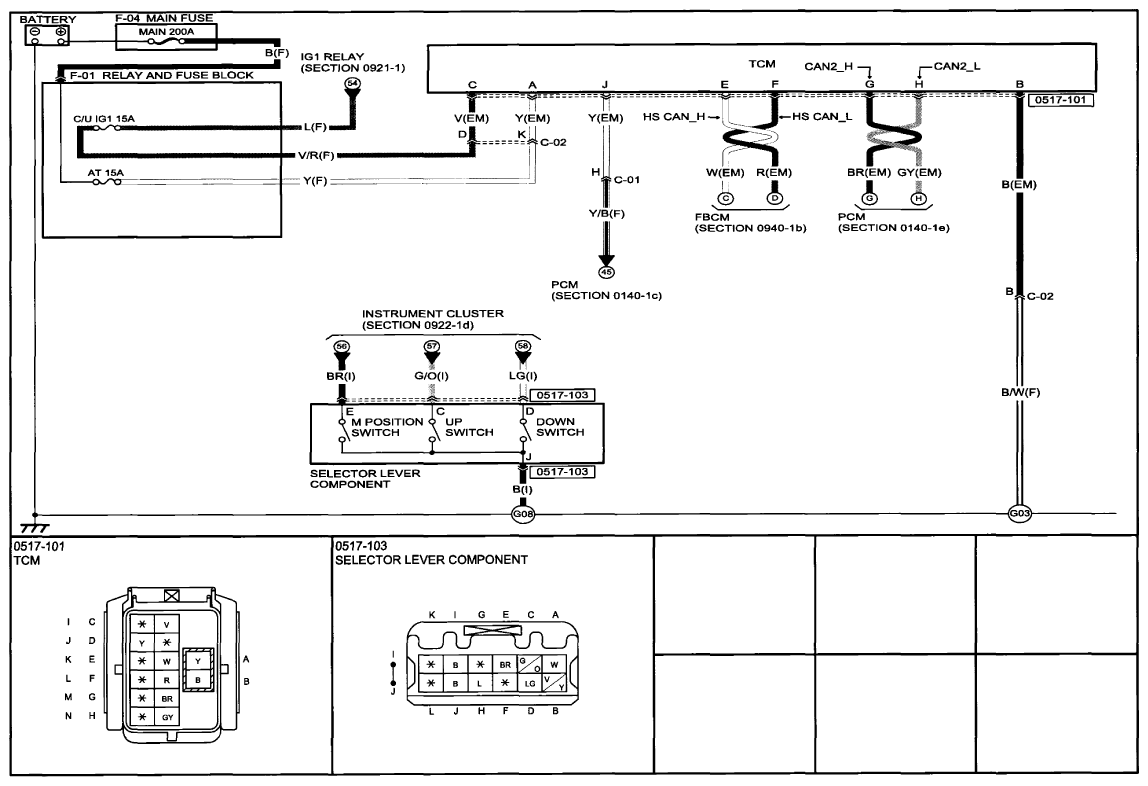

Fig 1: Automatic Transaxle Control System Connector End View (0517-1)

G09120237

Courtesy of MAZDA MOTORS CORP.
