DTC P2305-00: Ion Sensor No.2 Circuit Problem: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC P2305:00	Ion sensor No.2 circuit problem
DETECTION CONDITION	After the engine is started, when the engine speed is 2,000 rpm or less  , the signal input to the PCM from ion sensor No.2 is in error. Diagnostic support note  This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA (Mode 2)/Snapshot data is not available. The DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	-

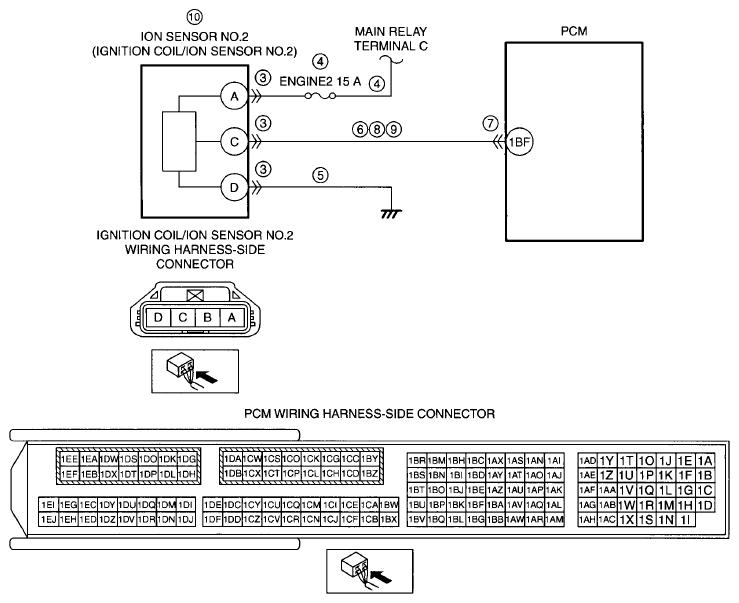

POSSIBLE CAUSE	Cylinder No.2 misfire Ignition coil/ion sensor No.2 connector or terminals malfunction Short to ground or open circuit in ion sensor No.2 power supply circuit Short to ground in wiring harness between ENGINE2 15 A fuse and ignition coil/ion sensor No.2 terminal A ENGINE2 15 A fuse malfunction Open circuit in wiring harness between main relay terminal C and ignition coil/ion sensor No.2 terminal A Open circuit in wiring harness between ignition coil/ion sensor No.2 terminal D and body ground Short to ground in wiring harness between ignition coil/ion sensor No.2 terminal C and PCM terminal 1BF PCM connector or terminals malfunction Short to power supply in wiring harness between ignition coil/ion sensor No.2 terminal C and PCM terminal 1BF Open circuit in wiring harness between ignition coil/ion sensor No.2 terminal C and PCM terminal 1BF Ion sensor No.2 malfunction PCM malfunction
