DTC P2128-00: App Sensor No.2 Circuit High Input: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC P2128:00	APP sensor No.2 circuit high input
DETECTION CONDITION	The PCM monitors the input voltage from APP sensor No.2 when the engine is running. If the input voltage at the PCM terminal 2AS is more than 4.9 V  , the PCM determines that the APP sensor No.2 circuit has a malfunction. Diagnostic support note  This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Regulates the upper limit of the APP sensor output.

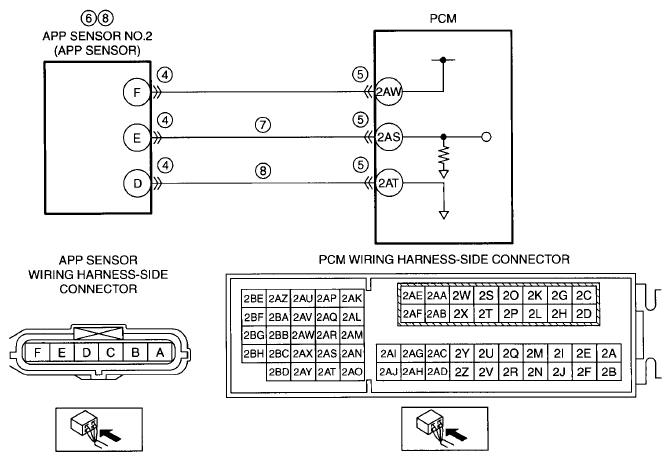

POSSIBLE CAUSE	APP sensor connector or terminals malfunction PCM connector or terminals malfunction APP sensor No.2 malfunction Short to power supply in wiring harness between APP sensor terminal E and PCM terminal 2AS Open circuit in wiring harness between APP sensor terminal D and PCM terminal 2AT PCM malfunction

CAUTION:

• Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.

RELATED PIDS

Monitor item (Definition)	Unit/Condition	Condition/Specification (Reference)
APP1	%	Accelerator pedal released: approx. 16 %  Accelerator pedal depressed: approx. 80 %
	V	Accelerator pedal released: approx. 0.8 V  Accelerator pedal depressed: approx. 4 V
APP2	%	Accelerator pedal released: approx. 8 %  Accelerator pedal depressed: approx. 40 %
	V	Accelerator pedal released: approx. 0.4 V  Accelerator pedal depressed: approx. 2 V
