DTC C0061-28/C0061-64/C0062-28/C0062-64/C0063-28/C0063-64: SAS Control Module System: Notes
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
C0061:28, C0061:64, C0062:28, C0062:64, C0063:28, C0063:64 |
SAS control module system |
| DETECTION CONDITION |
NOTE:
- The low-G sensor and the yaw rate sensor are built into the SAS control module.
- C0061:28, C0061:64
- Out-of-specification signal modulation or lateral-G value is detected from the low-G sensor.
- C0062:28, C0062:64
- Out-of-specification signal modulation or longitudinal-G value is detected from the low-G sensor.
- C0063:28, C0063:64
- Out-of-specification signal modulation or yaw rate value is detected from the yaw rate sensor.
|
| FAIL-SAFE FUNCTION |
- C0061:28, C0061:64, C0063:28, C0063:64
- Illuminates the TCS/DSC indicator light.
- Tire pressure monitoring system warning light illuminates after flashes.
- Inhibits the TCS, DSC, roll over mitigation (ROM), and TPMS controls.
- C0062:28, C0062:64
- Illuminates the ABS warning light*1
and TCS/DSC indicator light.
- Inhibits the ABS*2
, TCS*2
, DSC*2
, roll over mitigation (ROM)*2
, brake assist control*2
, and hill launch assist (HLA) controls.
*1
: Not illuminated depending on malfunction content.
*2
: Enabled depending on malfunction content. |
| POSSIBLE CAUSE |
- SAS control module malfunction

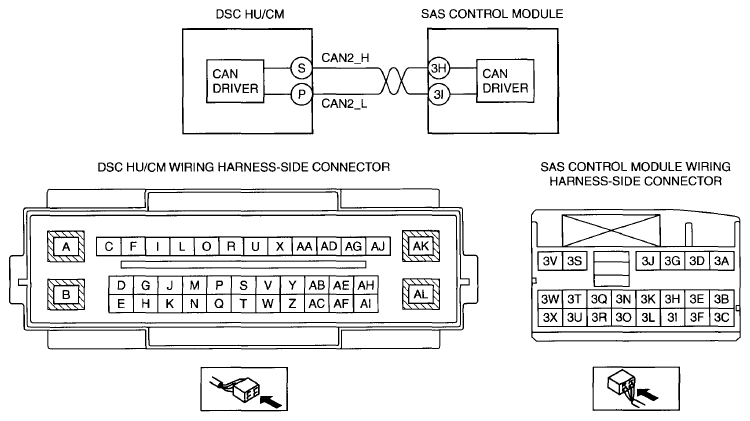

- Open or short circuit in the CAN2_H wiring harness between DSC HU/CM terminal S and SAS control module terminal 3H
- Open or short circuit in the CAN2_L wiring harness between DSC HU/CM terminal P and SAS control module terminal 31
- DSC HU/CM malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
