Power Window System Wiring Diagram [Power Window System]

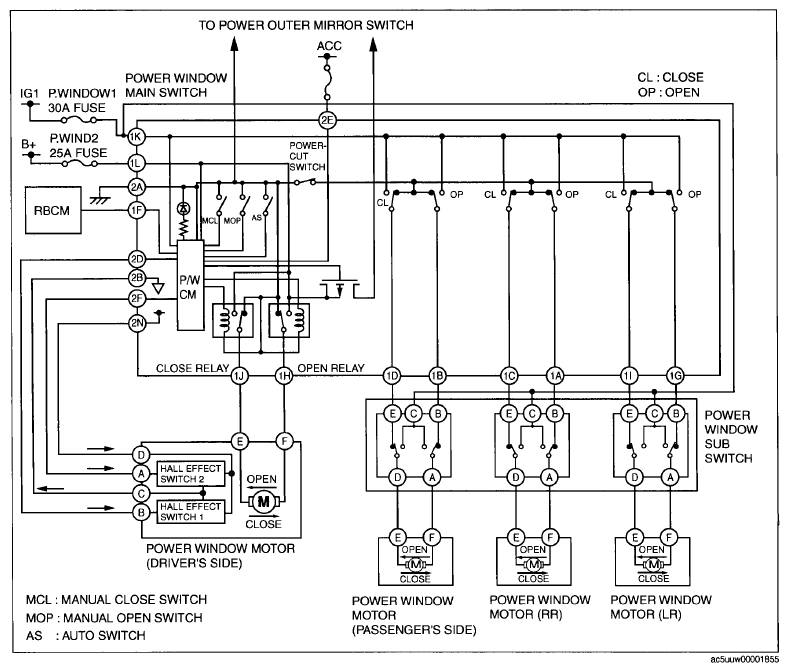

Fig 1: Power Window System - Wiring Diagram
