Start Stop Unit And Push Button Start Connector End View

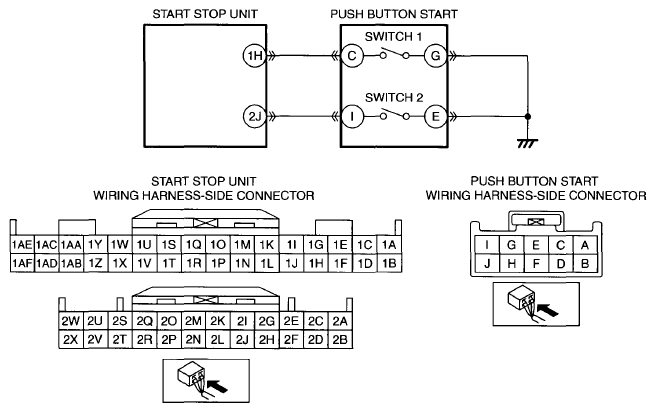

Fig 1: Start Stop Unit And Push Button Start Connector End View

G09076296

Courtesy of MAZDA MOTORS CORP.
