On-Board System Readiness Tests Access Procedure

Connect the M-MDS (IDS) to the DLC-2.

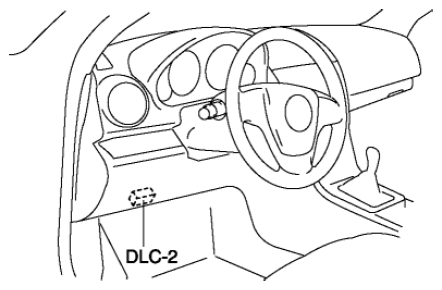

Fig 1: Identifying DLC-2
After the vehicle is identified, select the following items from the initialization screen of the IDS.
1. Select "Powertrain".
2. Select "OBD Test Modes".
3. Select "Mode 1 Powertrain Data".
4. Select "PCM".
Then, select the "***SUP" and "**EVAL" PIDs in the PID selection screen.
Monitor those PIDs and check it system monitor is completed.
NOTE:
- If the on-board system readiness tests are not completed the PCM stores DTC P1000.
