Fuel System Location Index
>>
Engine Compartment Side
Engine Compartment Side

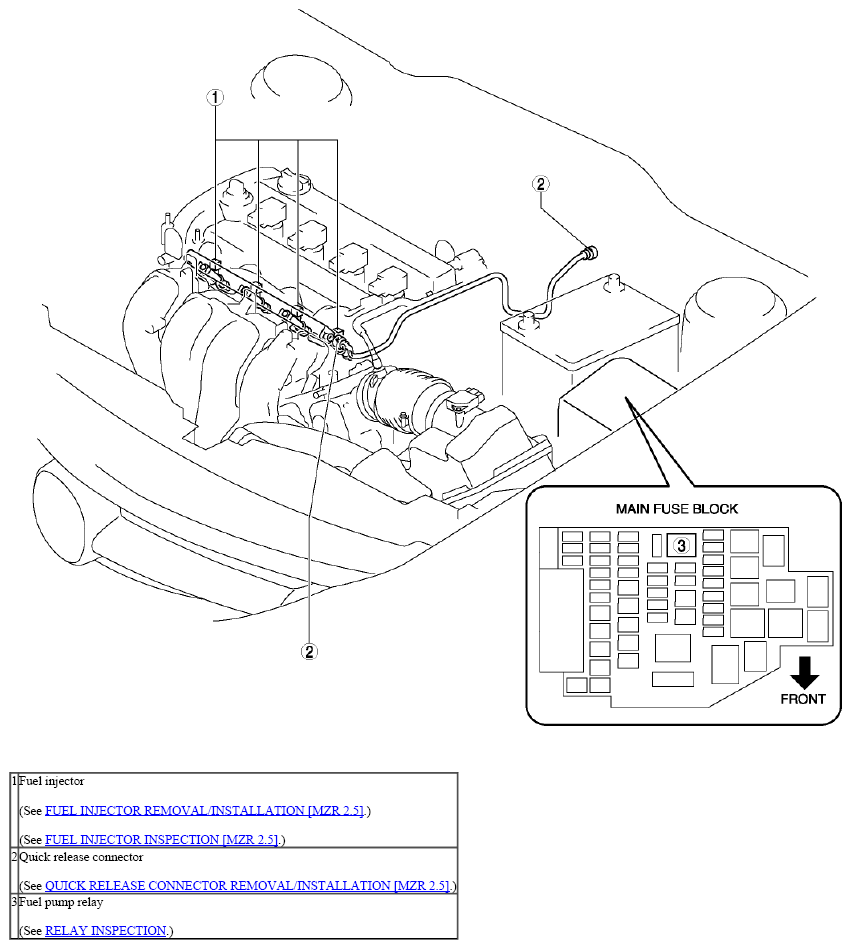

Fig 1: Locating Fuel Pump Relay, Injectors And Quick Release Connector - Engine Compartment Side
