Wheel Hub, Steering Knuckle Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

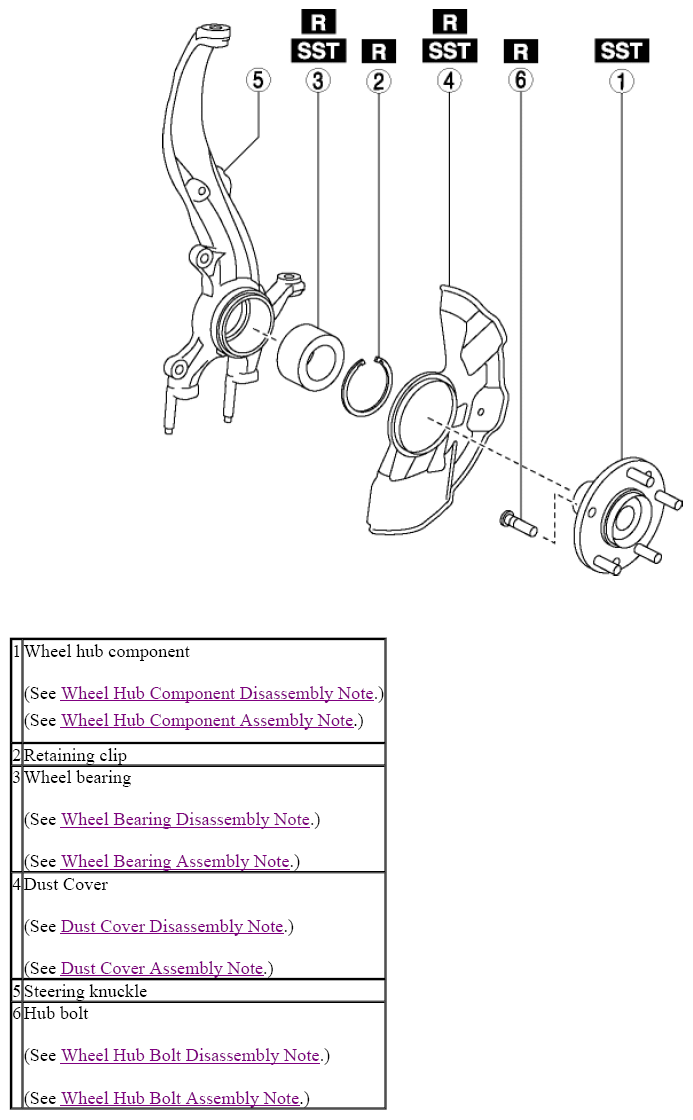

    Fig 1: View Of Wheel Hub And Steering Knuckle Components
    G08141035
  2. Assemble in the reverse order of disassembly.
