System Wiring Diagram [Abs/Dynamic Stability Control (DSC)]

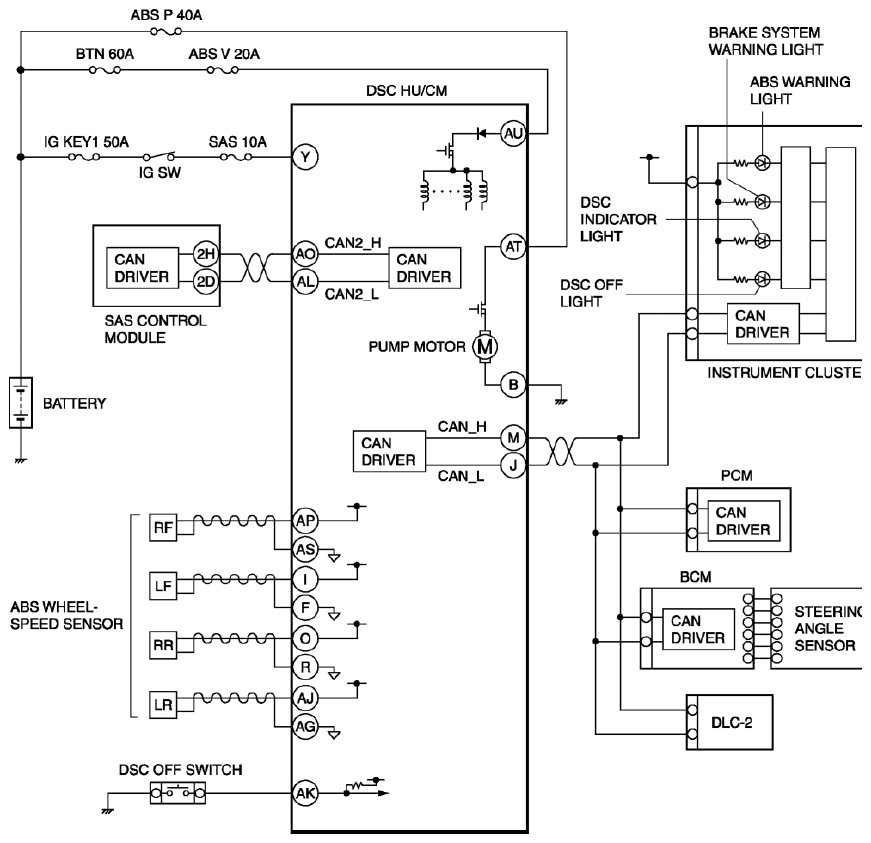

Fig 1: ABS/Dynamic Stability Control System Wiring Diagram

G08150591
