DTC C1109:64 [Dynamic Stability Control (DSC)]: Notes

DTC C1109:64 DSC OFF switch
DETECTION CONDITION
  • Continuous ON signal from the DSC OFF switch for 10 s or more  is detected.
FAIL-SAFE FUNCTION
  • Permits the control and does not illuminate each warning/indicator light.
POSSIBLE CAUSE
  • The driver pressed and held the DSC OFF switch for 10 s or more  .

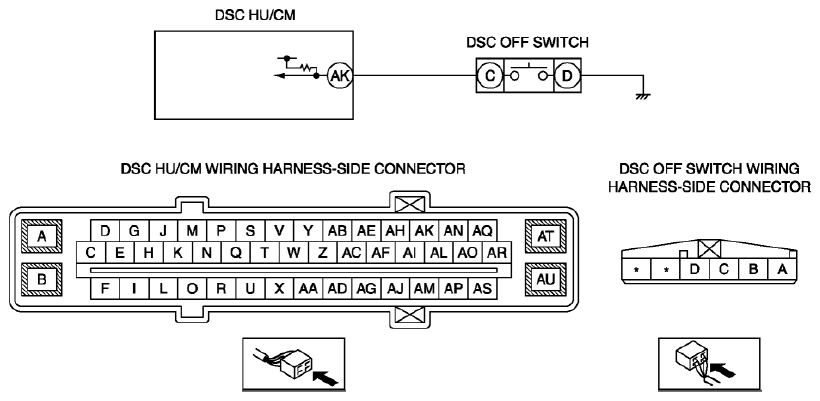

  • Short to ground in the wiring harness between DSC OFF switch and DSC HU/CM terminal AK
  • DSC OFF switch malfunction
  • Poor connection at connectors (female terminal)
G08150588
