Home >> Mazda >> 2013 >> 5 Touring >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Security And Locks Location Index >> Locks and Openers

Locks and Openers

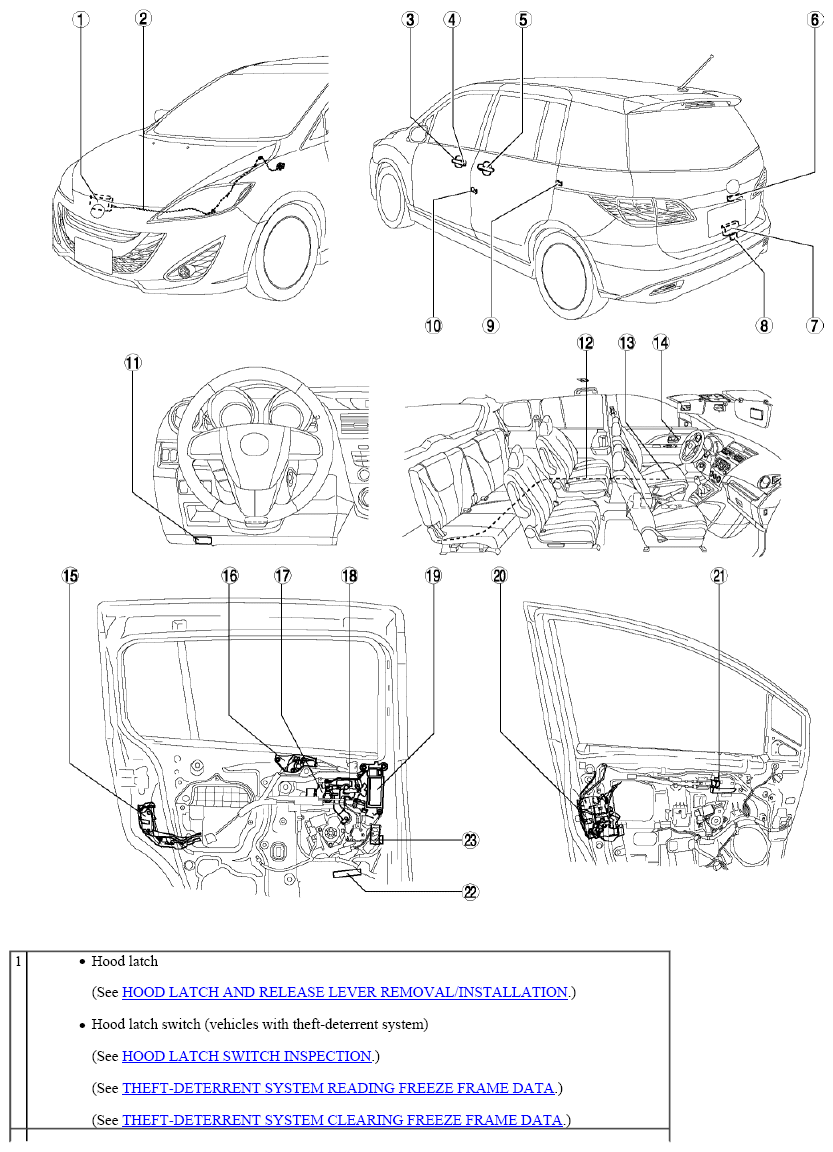

Fig 1: Identifying Locks And Openers Component Locations (1 Of 2)

G08153019

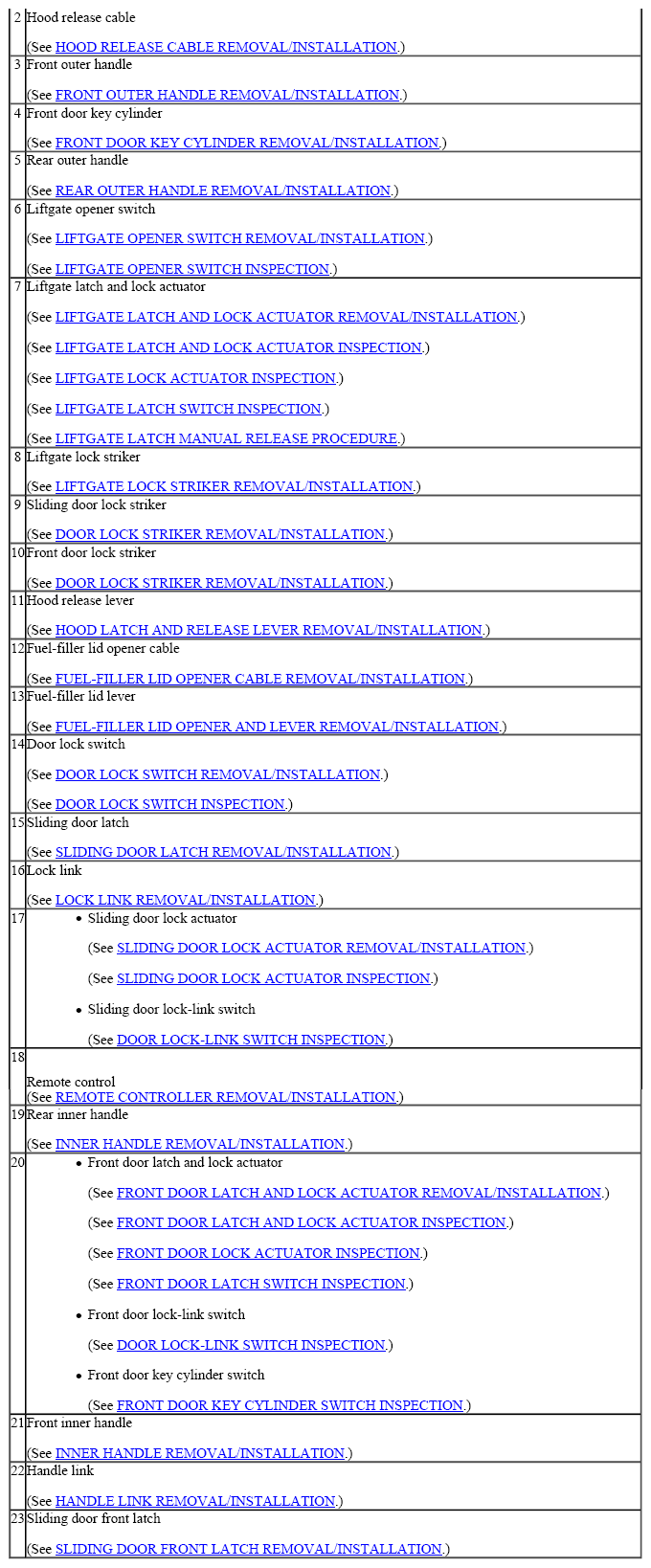

Fig 2: Identifying Locks And Openers Component Locations (2 Of 2)

G08153020
