Transaxle Oil Replacement
- Park the vehicle on level ground.

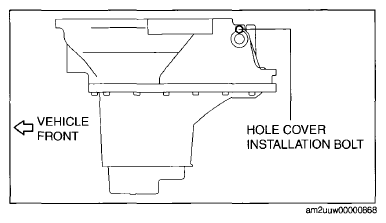

- Remove the hole cover.
- Remove the drain plug with the washer.
- Drain the transaxle oil.
- Install a new washer and the drain plug.
Tightening torque
39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}

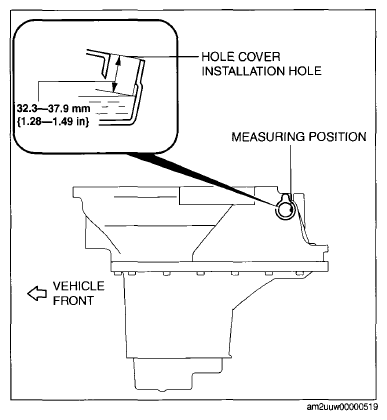

- Add the specified amount and type of oil through the hole cover installation hole until the level reaches as shown in the figure.
Manual transaxle oil grade API service GL-4
Manual transaxle oil viscosity SAE 75W-80
Manual transaxle oil capacity (approx. quantity)
2.91 L {3.07 US qt, 2.56 Imp qt}
- Install the hole cover.
Tightening torque
8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
