No.4 Engine Mount Installation Note
Tighten the nuts and bolts in the order of A to B.
Tightening torque
74-105 N.m {7.6-10 kgf.m, 55-77 ft.lbf}

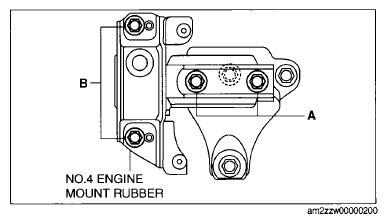

Fig 1: Identifying No.4 Engine Mount Rubber (A And B)
