DTC P2127:00: APP sensor No.2 circuit low input: Notes

DTC DETECTION CONDITION & POSSIBLE CAUSES

DTC P2127:00	APP sensor No.2 circuit low input
DETECTION CONDITION	If the input voltage is 0.35 V or less  , the PCM determines that the APP sensor No.2 circuit input voltage is low. Diagnostic support note  This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

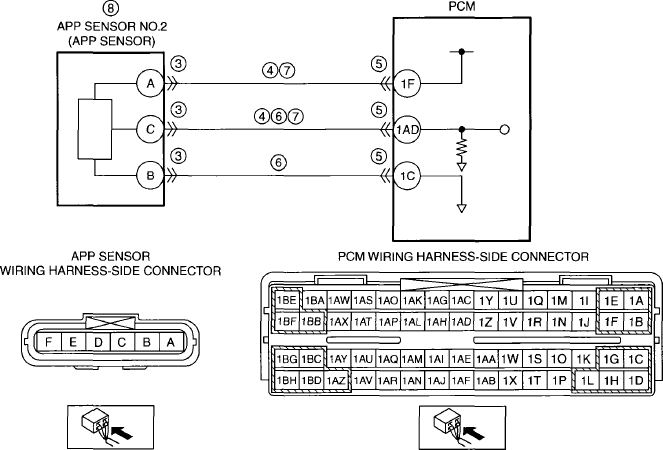

POSSIBLE CAUSE	APP sensor connector or terminals malfunction Short to ground in wiring harness between the following terminals: APP sensor terminal A-PCM terminal 1F APP sensor terminal C-PCM terminal 1AD PCM connector or terminals malfunction APP sensor No.2 signal circuit and ground circuit are shorted to each other Open circuit in wiring harness between the following terminals: APP sensor terminal A-PCM terminal 1F APP sensor terminal C-PCM terminal 1AD APP sensor No.2 malfunction PCM malfunction
