No.24 A/C Is Always On Or A/C Compressor Runs Continuously: Notes

CONDITION DESCRIPTION & POSSIBLE CAUSE

24	A/C IS ALWAYS ON OR A/C COMPRESSOR RUNS CONTINUOUSLY
DESCRIPTION	The A/C compressor magnetic clutch does not disengage.

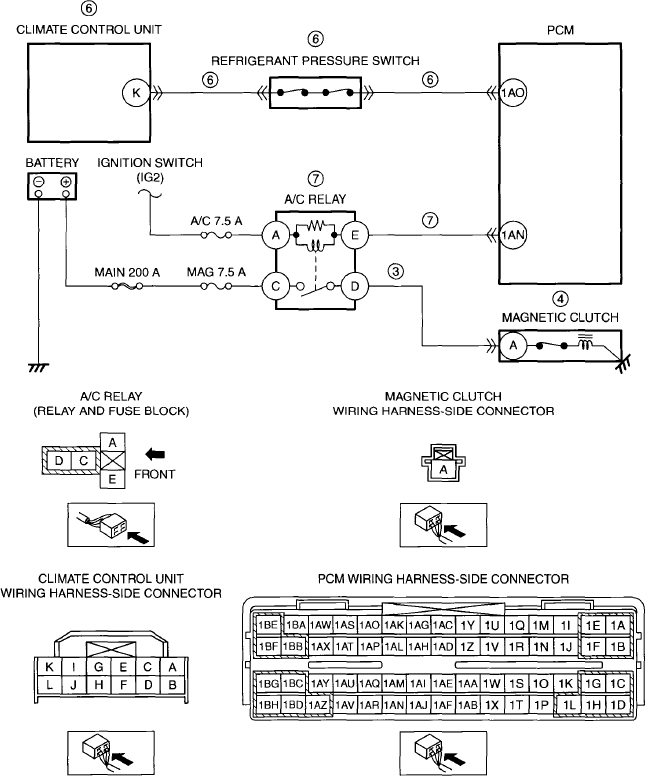

POSSIBLE CAUSE	A/C compressor magnetic clutch stuck engagement A/C relay is stuck closed Improper A/C compressor magnetic clutch clearance Short to ground in wiring harness between A/C relay terminal E and PCM terminal 1AN A/C relay to magnetic clutch circuit short to battery power Short to ground in wiring harness between climate control unit terminal K and PCM terminal 1AO PCM malfunction
