HO2S Inspection

  1. Warm up the engine to normal operating temperature.
  2. Using the M-MDS, monitor the following:
    • Vehicle speed (PID: VSS)
    • Engine speed (PID: RPM)
    • HO2S voltage (PID: O2S12)
  3. Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 rpm or more.
  4. Verify that the HO2S outputs a voltage of 0.6 V or more, one time or more, then verify that the HO2S voltage (PID: O2S12) is 0.3 V or less while decelerating as shown in the figure.

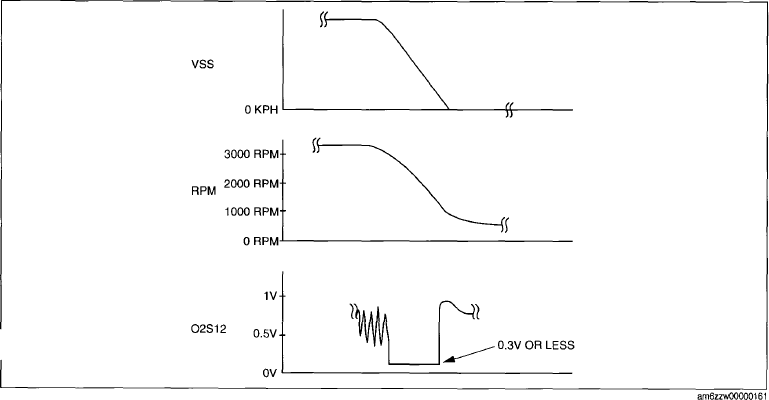

    Fig 1: Air Fuel Ratio (A/F) Sensor Vehicle Speed, Engine Speed And O2S12 Graph
    G09130340
