Clearance Inspection

Remove the rear ABS wheel-speed sensor.
Measure the distance between the rear ABS wheel-speed sensor installation surface and the ABS sensor rotor. This is dimension A.
Calculate the clearance between the front ABS wheel-speed sensor and the ABS sensor rotor using the following formula:
Clearance (mm {in}) = A-15.0 {0.60 in}
Verify that the clearance between the ABS sensor rotor and the rear ABS wheel-speed sensor is as indicated below.
- If there is any malfunction, replace it.

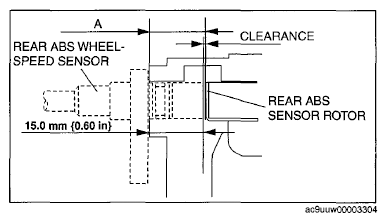

  Fig 1: Measuring Distance Between Rear ABS Wheel-Speed Sensor And ABS Sensor Rotor
  Courtesy of MAZDA MOTORS CORP.
Clearance
- 0.3-1.1 mm {0.012-0.043 in}
