Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Start System]
Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Start System]

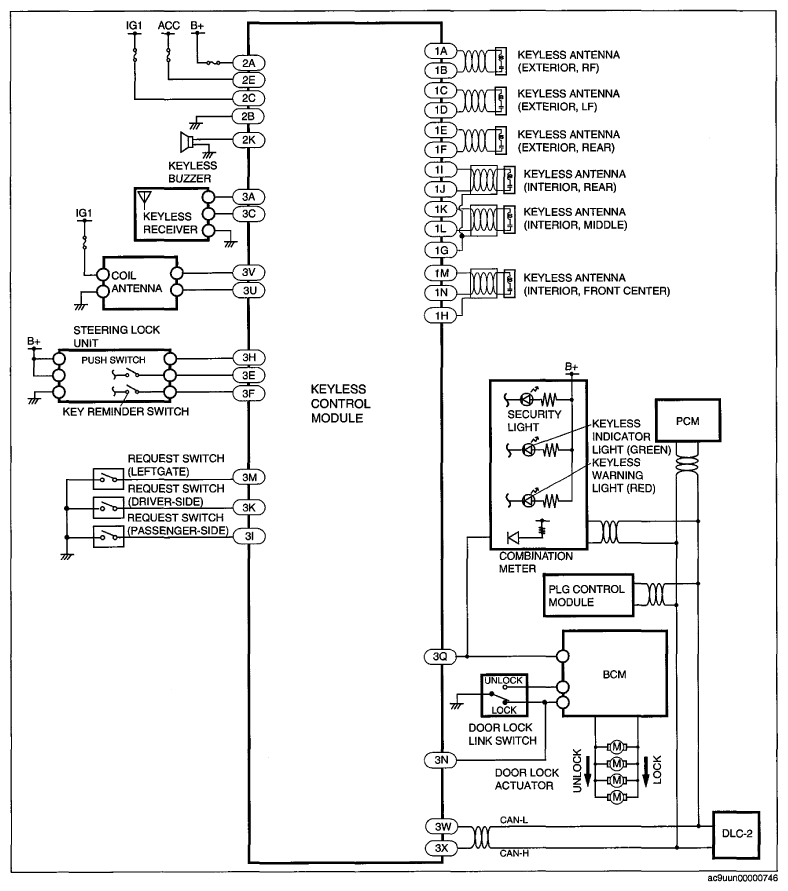

Fig 1: Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Start System]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
