Seal Ring Assembly Note

  1. Apply ATF to the surface of the SST  (49 E032 305).
  2. Press the seal ring from the tapered side of the SST  , and slide it to the end of the SST  while pressing the seal ring uniformly.
    Fig 1: Pressing Seal Ring
    G08143465
  3. Align the end of the SST  (seal ring assembly side) with the sleeve groove.

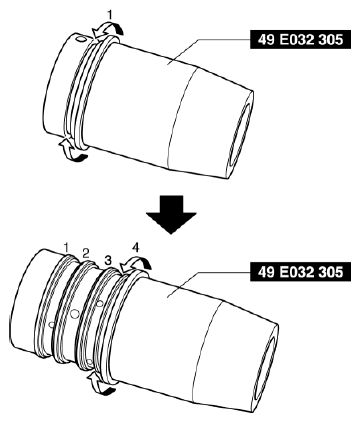

    Fig 2: Aligning End Of SST (Seal Ring Assembly Side) With Sleeve Groove
    G08143466
  4. Slide and assemble the seal ring to the sleeve groove.
  5. Repeating Steps  1 to  4, assemble the 4 seal rings.
