Home >> Mazda >> 2012 >> 6 s Touring Plus >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Power Steering Oil Pump Disassembly/Assembly [MZR 2.5] >> Notes

Power Steering Oil Pump Disassembly/Assembly [MZR 2.5]: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

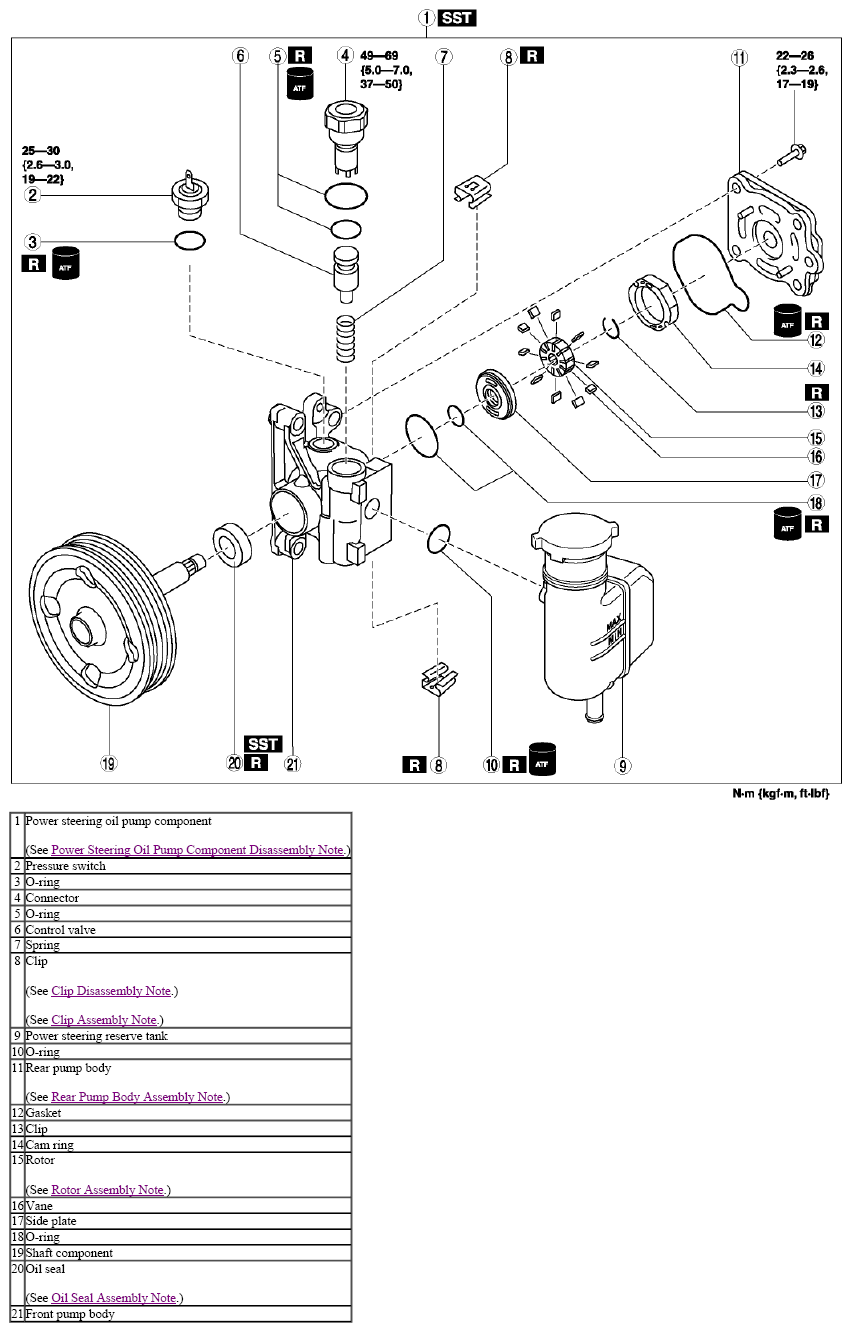

    Fig 1: Power Steering Oil Pump Components With Torque Specifications
    G08143503
