Starter Installation Note

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the insulator is peeling or damaged, attach a new insulator using the following procedure:

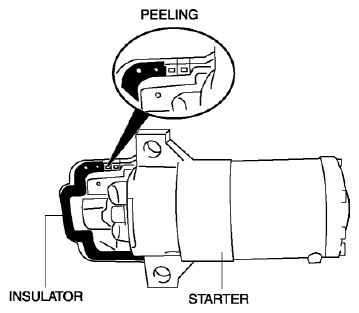

Fig 1: Identifying Insulator Peeling Area Of Starter

Peel off the insulator from the starter completely using a scraper.
Degrease the insulator attachment area.

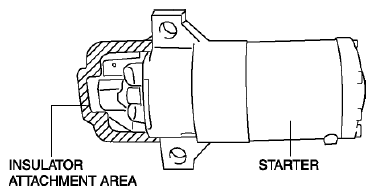

Fig 2: Identifying Insulator Attachment Area Of Starter
Attach a new insulator to the starter.

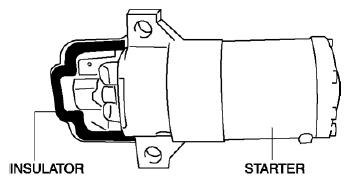

Fig 3: Identifying Insulator On Starter
