Starter Disassembly/Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

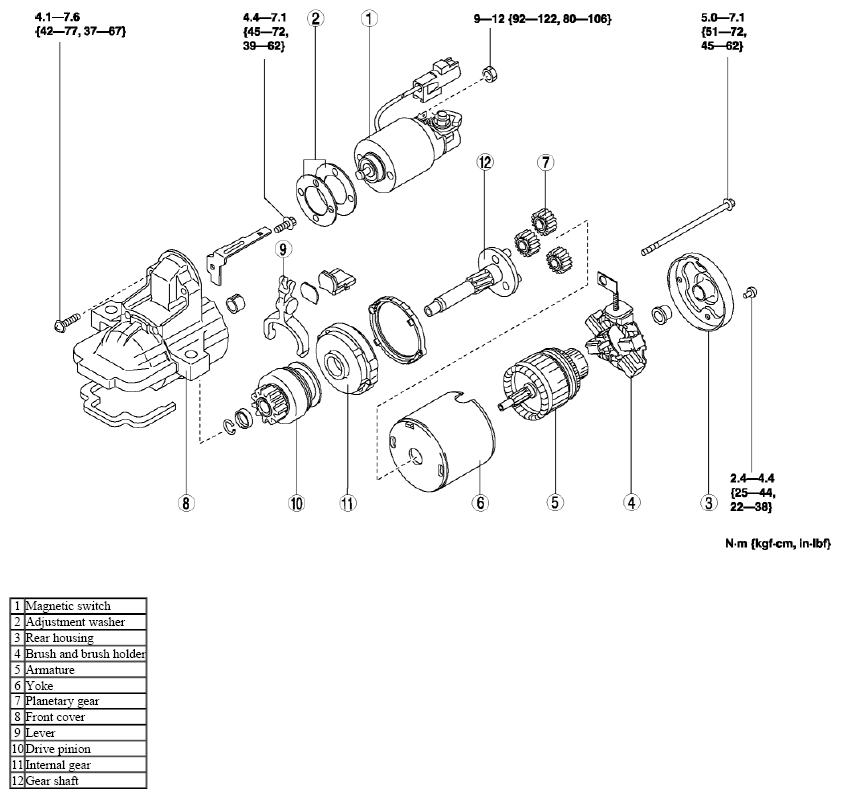

    Fig 1: Starter Components With Torque Specifications (MZR 2.5)
    G08140728
