Flywheel Inspection

WARNING: This page is about a different variant/trim than selected.

Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
Install a dial gauge on the cylinder block.
Measure the runout of the surface that contacts the clutch disc using a dial gauge.

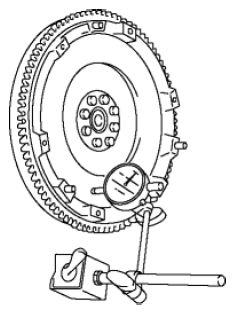

Fig 1: Measuring Runout Of Contacts Clutch Disc Surface Using Dial Gauge
- If it exceeds the maximum specification, replace the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  Flywheel maximum runout
- 0.1 mm {0.004 in}
