Flywheel Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Hold the flywheel using the SST  .

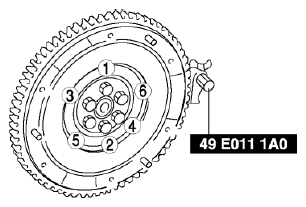

    Fig 1: Flywheel, SST And Lock Bolt Removal Sequence
    G08142656
  2. Loosen the lock bolts uniformly in the order of the numbers shown in the figure and remove the flywheel.
