Clutch Disc Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Clean the splines of the clutch disc and the main drive gear with a brush.
  2. Spread a thin layer of clutch grease on the splines.
  3. Hold the clutch disc position using the SST  .

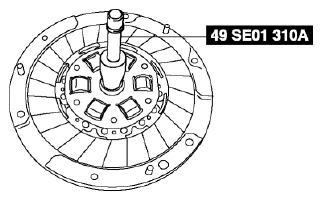

    Fig 1: Holding Clutch Disc
    G08142660
