Clutch Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the SSTs .

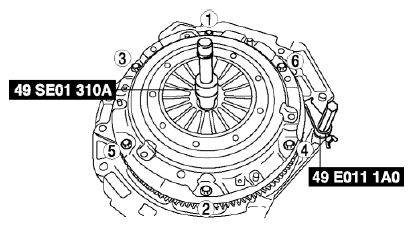

Fig 1: Installing SSTs On Clutch Cover And Disc
Tighten the bolts uniformly in the order of the numbers shown in the figure and install the clutch cover.
Tightening torque
- 25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}
