Starter Interlock Switch Installation Note
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- The starter interlock switch may not operate normally if the rod is pushed in. Do not push in the rod when installing the starter interlock switch.

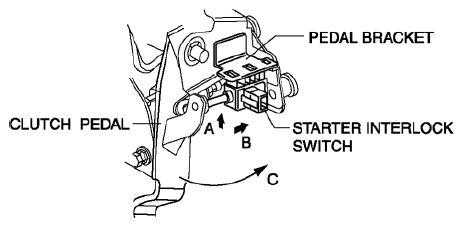

- Insert a new starter interlock switch into the pedal bracket hole in the direction of arrow A.
- While pressing the starter interlock switch in the direction of arrow A, slide it until it locks in the direction of arrow B to secure it.
- Fully depress the clutch pedal in the direction of arrow C, and verify that a click sound from the starter interlock switch is heard.
