Clutch Pedal Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Fully depress the clutch pedal, and verify that the engine starts.

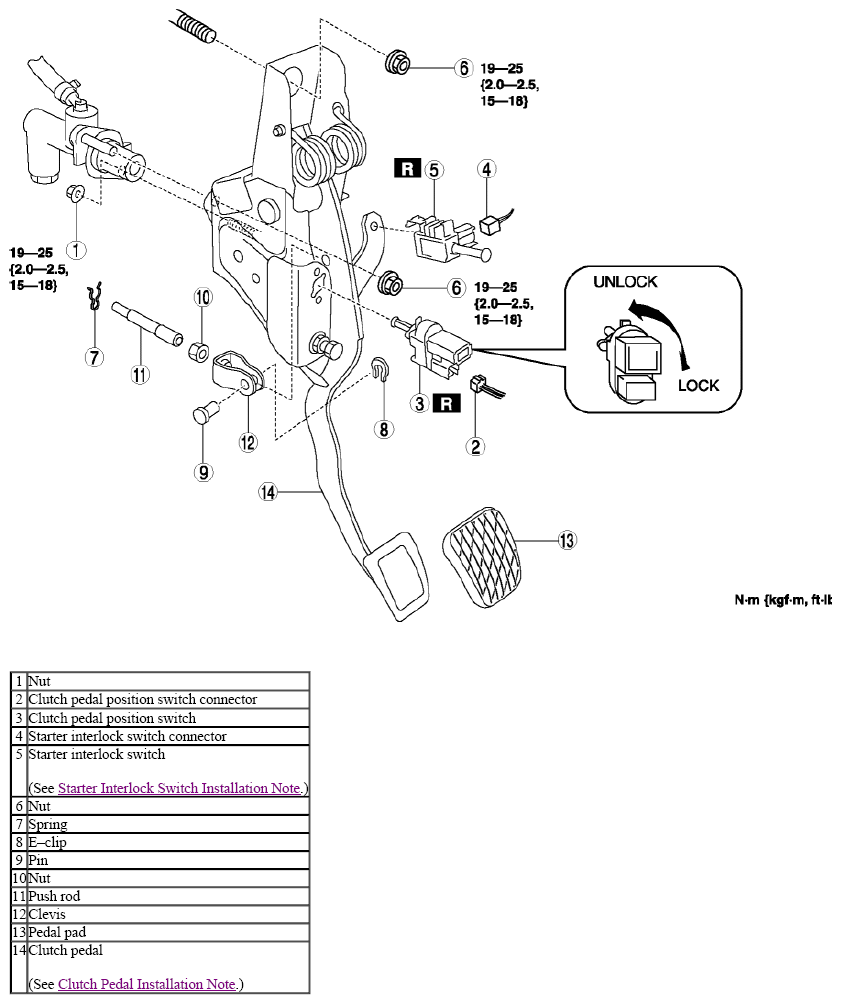

    Fig 1: Clutch Pedal Related Replacement Components With Torque Specifications (G66M-R)
    G08142645
