Clutch Master Cylinder Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

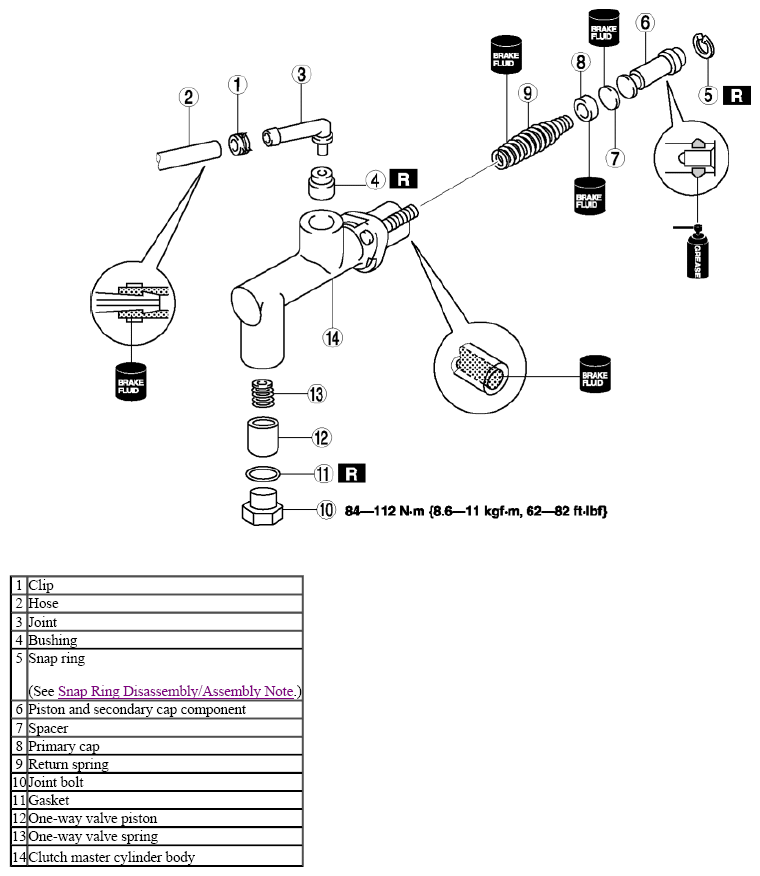

    Fig 1: Clutch Master Cylinder Components With Torque Specifications
    G08142648
