Trunk Lid Latch And Release Actuator Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the recess. (See RECESS REMOVAL/INSTALLATION .)
  3. Remove the trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

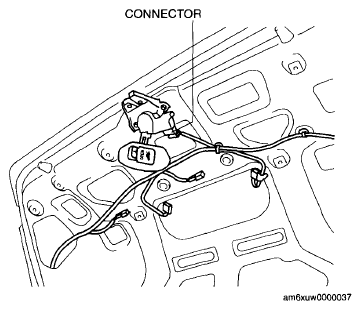

    Fig 1: Identifying Connector
    G06200934Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.

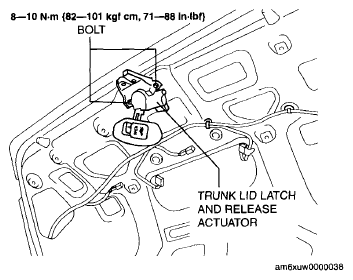

    6. Fig 2: Trunk Lid Latch And Release Actuator Mounting Bolts With Torque Specifications
    G06200935Courtesy of MAZDA MOTORS CORP.
  6. Remove the trunk lid latch and release actuator
  7. Install in the reverse order of removal.
