Fuel-Filler Lid Opener Cable Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts.
    1. Front seat (driver's seat) (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Front scuff plate (driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (driver's side) (See REAR SCUFF PLATE REMOVAL/INSTALLATION )
    4. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    5. Rear seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION )
    6. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION )
    7. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    8. Trunk side trim (driver's seat) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    9. Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    10. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
  3. Remove the fuel-filler lid opener cable.

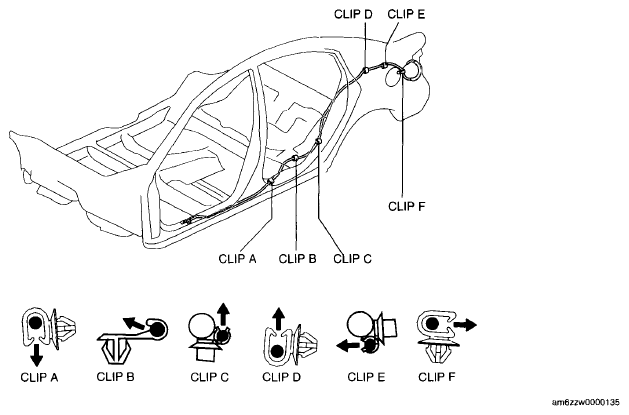

    Fig 1: Identifying Fuel-Filler Lid Opener Cable Clips
    G06200892Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
