Visual Inspection

  1. Inspect the following items:

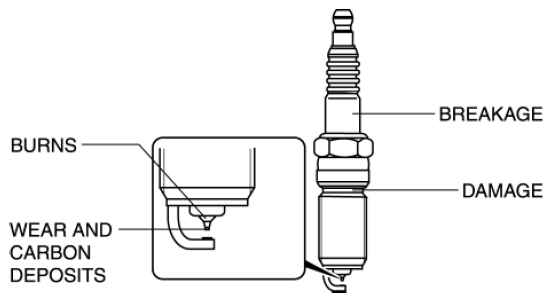

    Fig 1: Identifying Spark Plug Damage Points
    G08140705
    • If any of the following malfunctions are indicated, replace the spark plug.
      • Insulator breakage
      • Worn electrode
      • Damaged gasket
      • Badly burned insulator (sparking side)
