6 s Touring Plus
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [MZI 3.7 V6]
>>
Cylinder Head Temperature (CHT) Sensor Inspection
>>
CHT Sensor Resistance
CHT Sensor Resistance
CHT (°C {°F})
Resistance (kilohm)
20 {68}
Approx. 37.387
80 {176}
Approx. 3.775

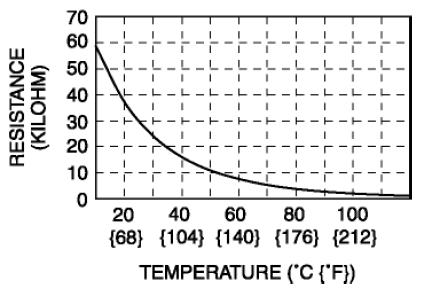

CHT sensor characteristics graph (reference)
Fig 1: CHT Sensor Characteristics Graph
