A/F Sensor (RH) Removal/Installation

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
Remove the following part for easier access.
- Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
- Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
- Windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
- Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
Disconnect the A/F sensor (RH) connector.
NOTE:
- If necessary, lubricate the A/F sensor with Penetrating and Lock Lubricant loosen to aid in removal.
Remove the A/F sensor (RH) using the SST .

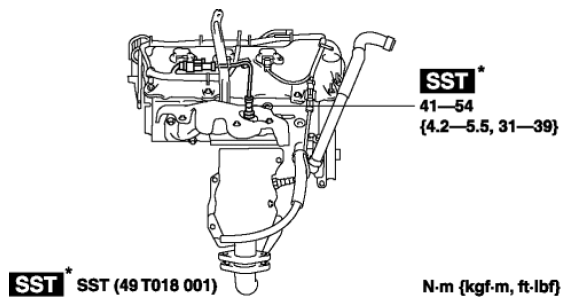

Fig 1: Removing A/F Sensor (RH) Using SST
NOTE:
- Apply a light coat of anti-seize lubricant to the threads of the A/F sensor.
Install in the reverse order of removal.
