DTC C1137:64 [Dynamic Stability Control (DSC)]
>>
Notes
DTC C1137:64 [Dynamic Stability Control (DSC)]: Notes
DTC 1137:64
Reverse signal (MTX)
DETECTION CONDITION
Detect the reverse signal for
10 s or more
under the following condition:
Vehicle speed:
60 km/h {37 mph} or more
POSSIBLE CAUSE
BCM malfunction
Connector or terminal malfunction
Back-up light switch malfunction

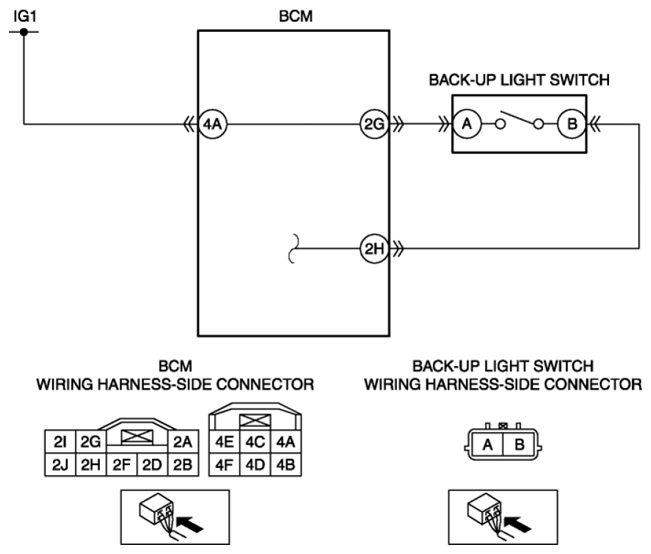

Short to power supply in wiring harness between back-up light switch terminal B and BCM terminal 2H
DSC HU/CM malfunction
