Power Window Main Switch

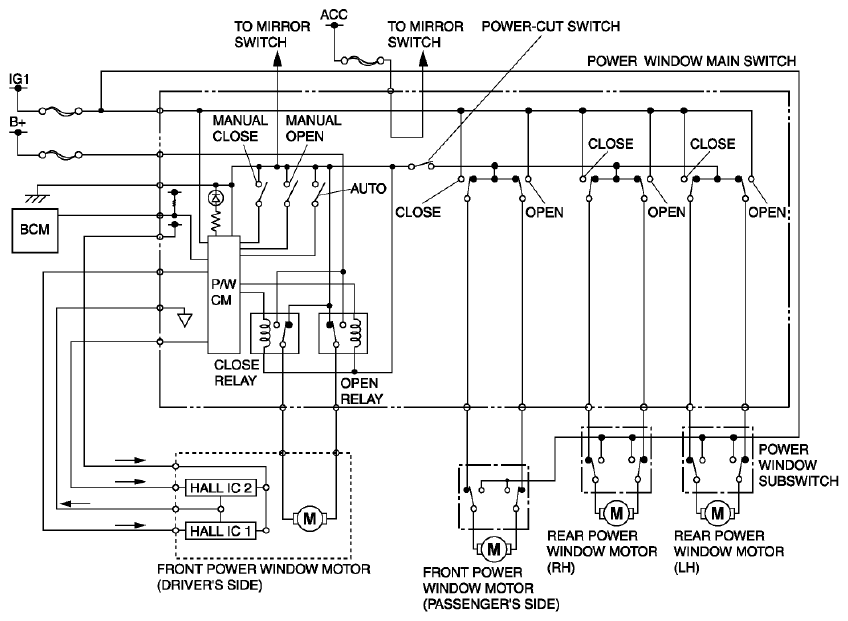

Fig 1: Power Window System Wiring Diagram - Power Window Main Switch (Without Exterior Open Function)

G08144177
