With Heated Outer Mirror

Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Disconnect the power outer mirror connector.
Verify that the resistance is as indicated in the table.

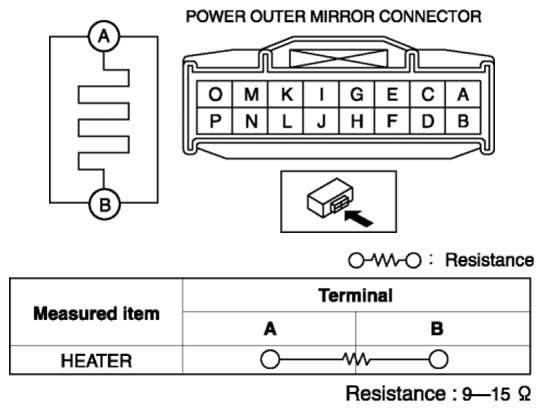

Fig 1: Power Outer Mirror Connector Terminals Resistance Chart
- If not as indicated in the table, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION .)
  - If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
