Hood Release Cable Removal/Installation
>>
Grommet Removal Note
Grommet Removal Note
Remove the grommet in the direction of the arrow (2) shown in the figure while pressing the grommet tabs in the direction of the arrow (1).

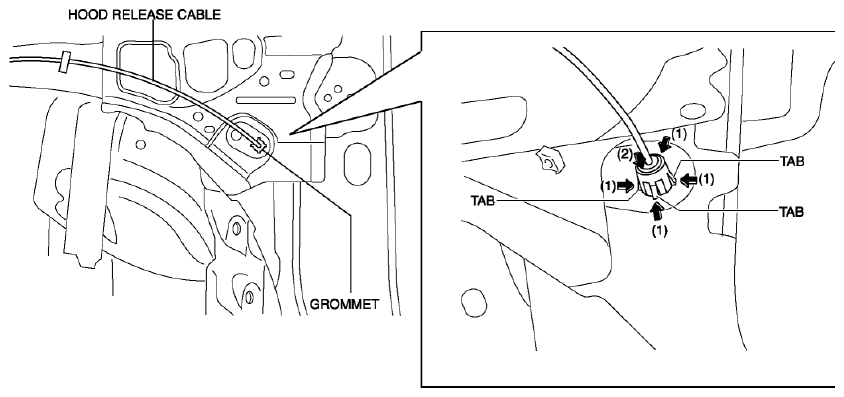

Fig 1: Identifying Grommet Tabs
