Coil Antenna Removal/Installation [Keyless Entry System]

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the coil antenna connector.

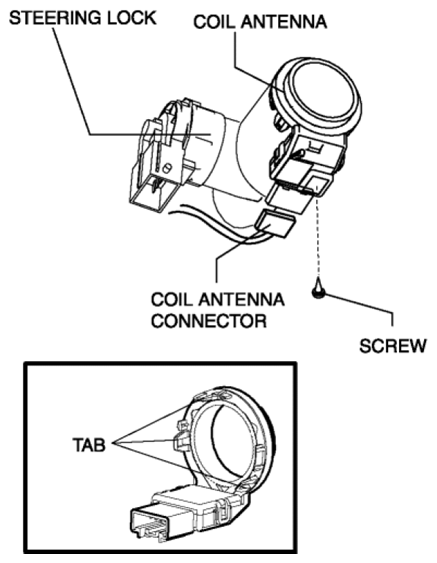

    Fig 1: Identifying Coil Antenna, Connector, Screw And Tabs
    G08144625
  4. Remove the screw.
  5. Detach the coil antenna hooks and remove the coil antenna from the steering lock.
  6. Install in the reverse order of removal.
