Microphone Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
  3. Press the microphone in the direction indicated by the arrow and remove the microphone.

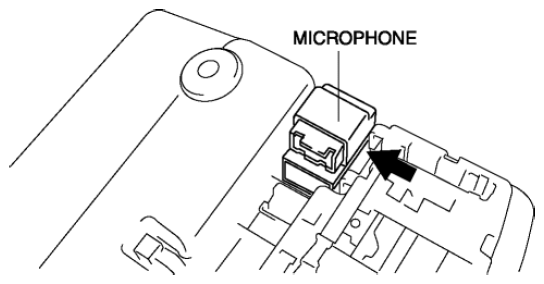

    Fig 1: Locating Microphone
    G08145012
  4. Install in the reverse order of removal.
