Clock Spring And Bluetooth Unit Connector End View

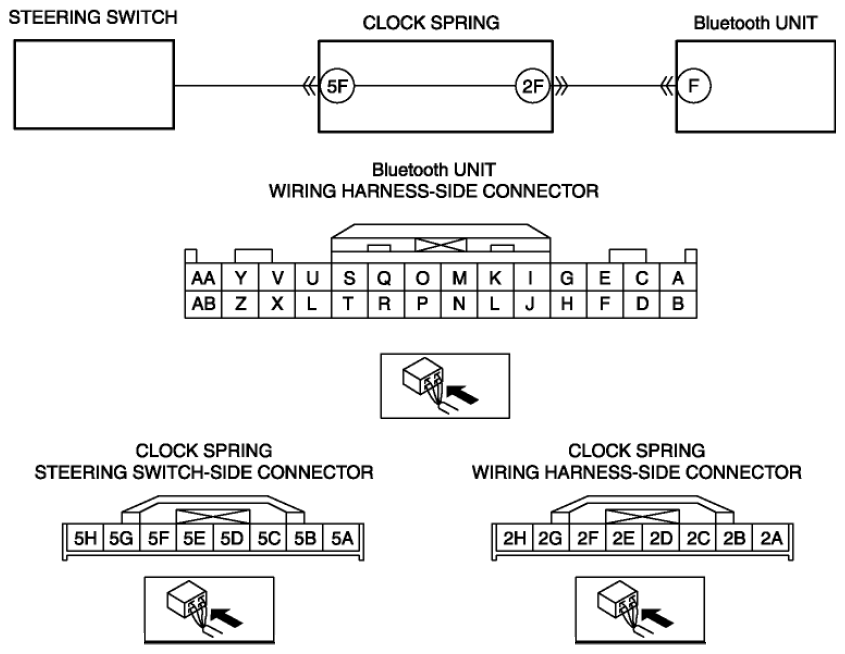

Fig 1: Clock Spring And Bluetooth Unit Connector End View

G08144045

Courtesy of MAZDA MOTORS CORP.
