Steering Shaft Component Installation Note

  1. Verify that the adjusting lever is in the LOCK position.
  2. Tighten the bolts in alphabetical order.

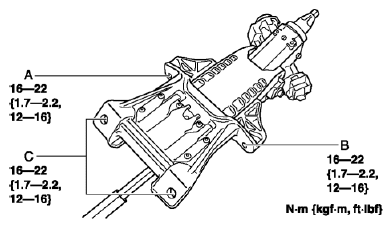

    Fig 1: Steering Shaft Bolts Tightening Sequence With Torque Specifications
    G08152196
