Wiper And Washer Switch Connector End View

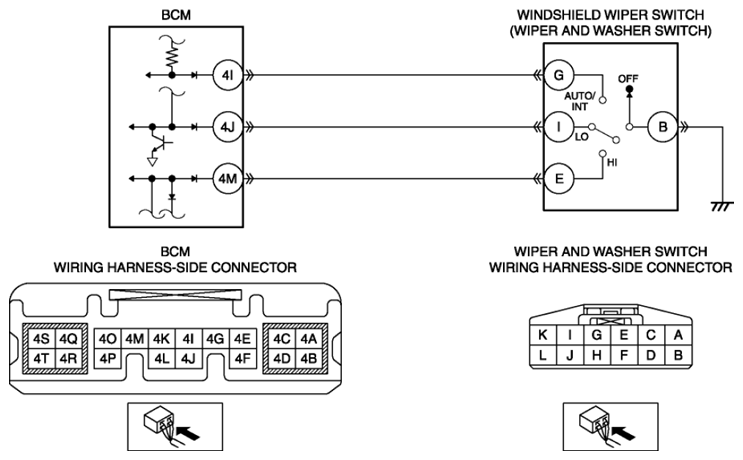

Fig 1: Wiper And Washer Switch Connector End View

G08152622

Courtesy of MAZDA MOTORS CORP.
