Rear Fan Switch Connector End View

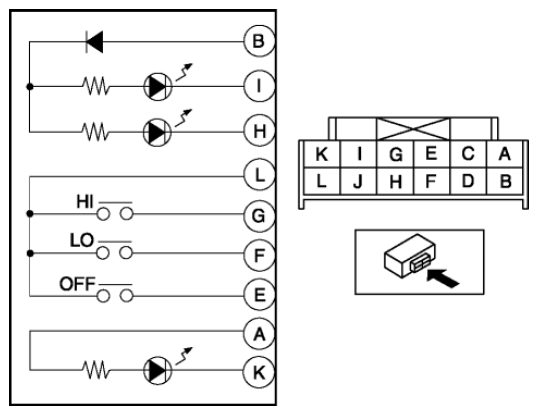

Fig 1: Rear Fan Switch Connector End View

G08151000

Courtesy of MAZDA MOTORS CORP.
