Power Outer Mirror Switch And Power Window Main Switch Connector End View

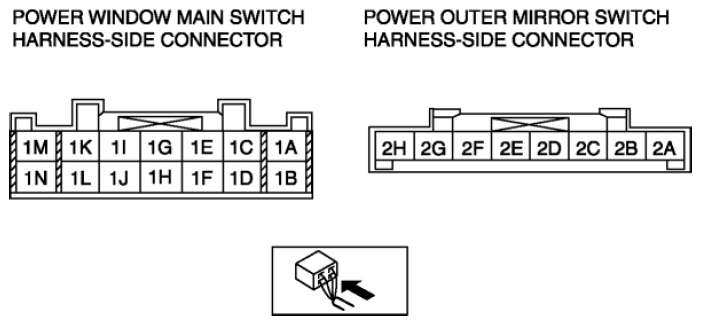

Fig 1: Power Outer Mirror Switch And Power Window Main Switch Connector End View

G08152889

Courtesy of MAZDA MOTORS CORP.
